24V High Temperature Equipment Cooling Fans , Air Cooling Exhaust Fan Blower For Car Cabin

12v / 24V ball bearing 97mm X 33mm high temperature DC brushless air cooling exhaust fan blower for car cabin

Shenzhen Topfan-China Development Technology Co ., Ltd , and founded in 1996 in Shenzhen China , It ' s a professional manufacturer on DC AC brushless fans . Products support OEM , ODM andpassed CE , RoHS certificated and good sellers both at home and abroad , including Europe , North America , Asia ( Korea and India ) etc . The products, including axialfans , cross flow fans, blower fans , being widely used in the information technology , network communications as well as industrial equipment , medical equipment , home appliances and others .

1 . Description :

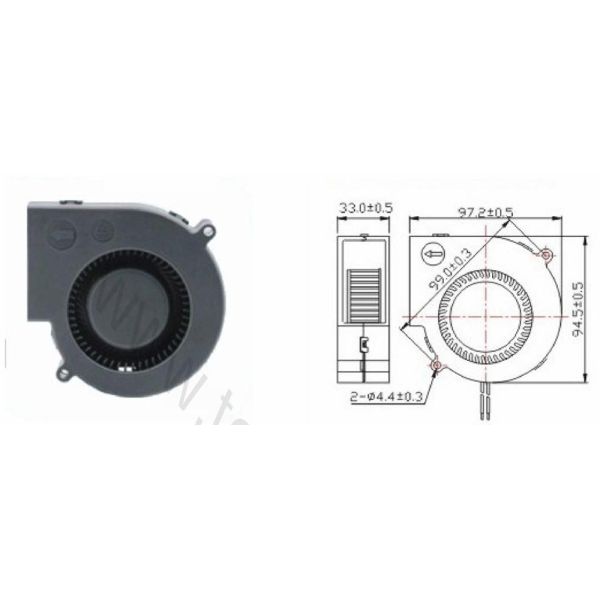

· 97mm x 97mm x 33mm DC Blower Fan , DC Burshless Fan , Computer Fan , DC Cooling Fan

2 . Material :

· Frame : Plastic ( UL94V-0 )

· Impeller : Plastic ( UL94V-0 )

· Leadwire : UL1007 AWG#26 or Equivalent ( + ) : Red ( - ) : Black

3 . Protection :

· Motor : Impedance Protected and Reverse Polarity Protected

4 . Expected Life :

· Ball bearing : 50 , 000 hours ( 40 ℃ )

· Hydraulic Bearing : 40 , 000 hours ( 40 ℃ )

· Sleeve Bearing : 30 , 000 hours ( 40 ℃ )

5 . Allowable Ambient Temperature Range :

· Operating Temperature : - 10 ℃~+ 70 ℃

· Storage Temperature : - 40 ℃~+ 70 ℃

· Non Condensing Environment

6 . Insulation Resistance :

· Not less than 10M ohm between housing and positive end of lead wire ( red ) at 500V DC .

7 . Dielectric Strength :

· No damage should at 500 VAC for 60 second , measured with 5mA trip current between
housing and positive end of lead wire .

8 . Locked Rotor Protection :

· No damage shall be found after 72 hours continuously at condition of rotation locked ,
Restarting is automatic as soon as constraint to running has been released

9 . Polarity Protection :

· No damage shall be found with reverse connection 5 minute at rated voltage . After returning
to normal polarity , all function shall be normal
