    High Speed 12V DC Computer Case Cooling Fans Auto Radiator Type Explosion Proof

    Ask Lasest Price
    Brand Name : MX
    Model Number : MX12038AB(S)M1
    Certification : CE/ROHS/UL/SGS
    Price : us$1.5/pcs to us$5.00/pcs, and negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 600,000pcs per month
    Delivery Time : 5-12 working days after received your payment
    • Product Details
    • Company Profile

    High Speed 12V DC Computer Case Cooling Fans Auto Radiator Type Explosion Proof

    12V DC Computer Case Cooling Fan 120 × 120 × 38 mm / Auto Radiator Fan / DC Fan

    12V DC Computer Case Cooling Fan 120 × 120 × 38 mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


    Detailed Product Description:

    • Voltage:12V , 24V, 48V
    • Insulation Resistance:10M AT 500VDC
    • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
    • Opetation Temperature:-10℃~70℃(Ordinary humidity)
    • Storage Temperature:-40℃~70℃(Ordinary humidity)
    • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)


    Description:


    ● Various Size
    ● High speed , Middle speed, Low speed
    ● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
    ● 7 blades or 9 blades
    ● 12V DC 24V DC or 48V DC
    ● Ball bearing
    ● Terminal or Lead wire
    ● Waterproof explosion proof or high proof are can be satisfied.


    1. General Specification


    /ITEMSpecification Condition
    01Part No.YM1212PMB2
    02Dimension120×120×38mm
    03Rated Voltage12VDC
    04Start-up Voltage7VDC25℃ Switch power ON/OFF
    05Operating Voltage10.8~13.8VDCa.Rated Voltage
    06Rated Speed2800rpm±10%b. 25℃
    07Rated Current0.50A-20%c. 65% RH
    08Rated Power6.0Wd. Measured after 5 Mins
    09Rated Airflow109.11CFM

    a. PQ Measurement Apparatus : (LW9266-SR)

    b. Standard : AMCA

    c. Rated Voltage

    d. Rated Current

    10Rated Static Pressure6.83mm-H2O
    11Life Expectancy80000hrs at 40℃

    a.L10 at Conf. Level 90%

    b.Rated Voltage

    12Noise Level43.58dB MaxE. Noise Measure Condition
    13No. of Pole4 Poles
    14No.of.Blade7 blade
    15Rotating DirectionClockwise(From Label side)

    2. Specification


    ITEMSpecification. Condition

    01


    Locked Rotor Protection (Automatic restart function)Safety Condition
    The current will shut down or remain a little range to protect motor from damage when locking rotor at the rated voltage and operation temperature, the fan will restart automatically within 5 seconds
    02

    Polarity Protection

    Open circuit when Vcc&GND are exchanged
    Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
    No Polarity Protection
    03Insulation Resistance10MΩ Between unshielded wire and frame at 500VDC/min
    04Dielectric Strength5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min
    05phase resistance

    L1=L2=6.0±10%Ω

    06Special FunctionSoft StartCurrent Limiter

    3. Main Materials, Parts Specification


    01Bearing■ Dual Ball BearingSleeve Bearing
    02FramePBT of UL94V-0.Die-cast Aluminum Alloy
    03ImpellerPBT of UL94V-0.Steel
    04Bobbin■ PBT of UL94V-0.
    05Lead WireRed(+)Black(-)Blue(PWM)UL1007 24#
    Yellow(FG)White(RD)2 wires 50±5mm
    06ConnectorPWBR-03VF-WGL1-R WITH SSM-01T-P1.4, 3P 2 wire
    07TubeNo
    08IP levelNo

    4. Environmental Specification


    ITEMSpecification. Condition
    01Operating Temp. RangeTemperature: -10 ℃ ~70℃
    Humidity:15%~ 90% RH (Frost Eliminated)
    02Storage Temp. RangeTemperature: -40 ℃ ~70℃
    Humidity:15%~ 90% RH (Frost Eliminated)
    03Thermal ShockPer MIL-STD 202F Method 107D,Condition D
    04Insulation ShockUL:Class A
    05Packing Vibration Test

    Packing condition: X, Y, Z 3 directions, 1.1g load vibration test

    for 30 min.

    06Packing Shock Proof Test1comer,3edges, 6faces natural drop from 60cm high packing No serious damage

    5. Dimensions (Unit:mm)

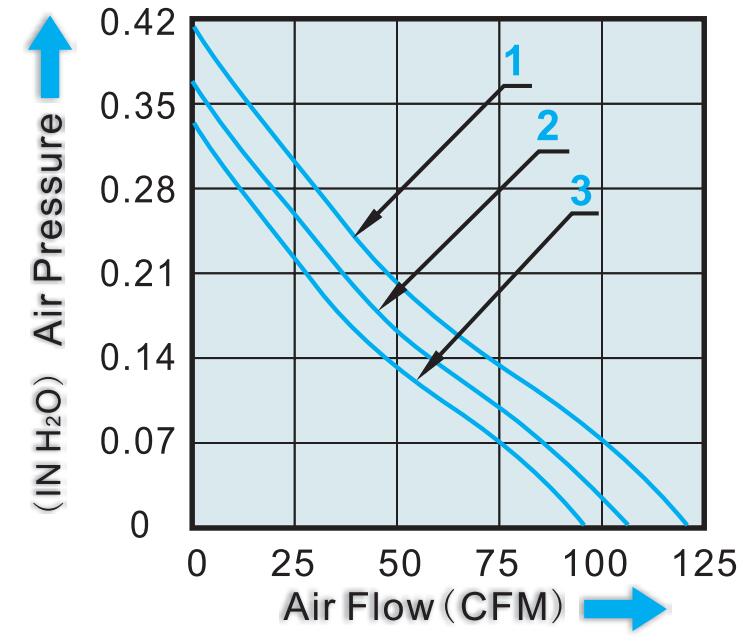

    Fan Performance Curve



    How to Select a right cooling fan?

    A:Where are you used? Application for what

    What's size limitation do you have?

    What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?

    What's power or CFM airflow required?

    It will help us to give you good idea to quote
