    Electrical 4.7 Inch Dc Cooling Fan With Pwm / 120mm 12 Volt Computer Fan

    Ask Lasest Price
    Brand Name : MX/ODM/OEM
    Model Number : MX12025ABL1
    Certification : CE/ROHS/UL/SGS
    Price : us$1.5/pcs to us$5.00/pcs, and negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 600,000pcs per month
    Delivery Time : 5-12 working days after received your payment
    • Product Details
    • Company Profile

    Electrical 4.7 Inch Dc Cooling Fan With Pwm / 120mm 12 Volt Computer Fan


    Electrical 4.7 Inch Dc Cooling Fan With Pwm / 120mm 12 Volt Computer Fan

    120×120×25mm 12V DC Computer Case Cooling Fan With PWM , low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


    Detailed Product Description:

    • Voltage:12V , 24V, 48V
    • Insulation Resistance:10M AT 500VDC
    • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
    • Opetation Temperature:-10℃~70℃(Ordinary humidity)
    • Storage Temperature:-40℃~70℃(Ordinary humidity)
    • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)

    Specification
    ItemUnitSpecificationCondition

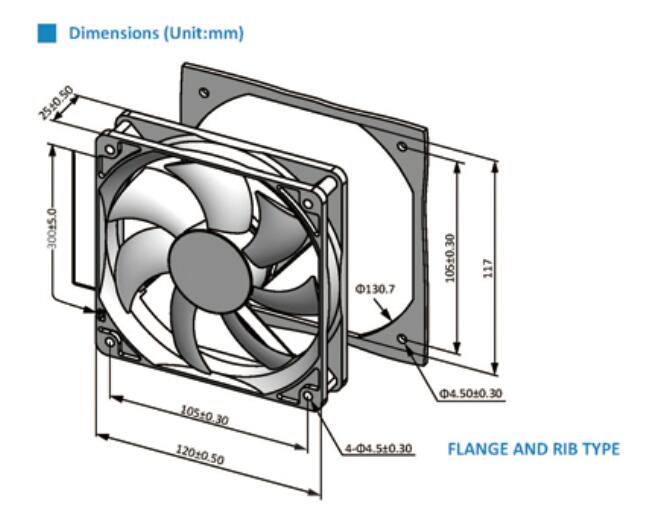

    Dimensionmm120*120*25L*W*T
    Bearing System--Ball---
    Rated VoltageVDC12.0---
    Operating Voltage RangeVDC10-13.8At 25℃
    Start-up VoltageVDC6VAt 25℃
    Rated CurrentA0.1±0.02At Rate Voltage
    Label CurrentA------
    Rated PowerW1.2At Rate Voltage
    Rated SpeedRPM1700±10%At Rate Voltage
    Air FlowCFM39.2Air Pressure=0
    Static Air PressuremmH2O2.3Air Flow=0
    Noise LeveldBA27.5Rated Speed
    Motor Protection--Impedance
    Other Features
    Auto RestartYesApplication
    Tachometer OutputNoNot Application
    Lock Rotor AlarmNoNot Application
    Thermal ControlNoNot Application
    PWM ControlYesApplication
    IP GradeNoNot Application
    Connection Lead Type
    Lead WireUL1007 24AWG * 360mm
    Connector2.54 3PIN
    Life ExpectancyHours50000Environment temperature At 25℃
    Net WeightGram164g




    How to Select a right cooling fan?

    A:Where are you used? Application for what

    What's size limitation do you have?

    What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?

    What's power or CFM airflow required?

    It will help us to give you good idea to quote
