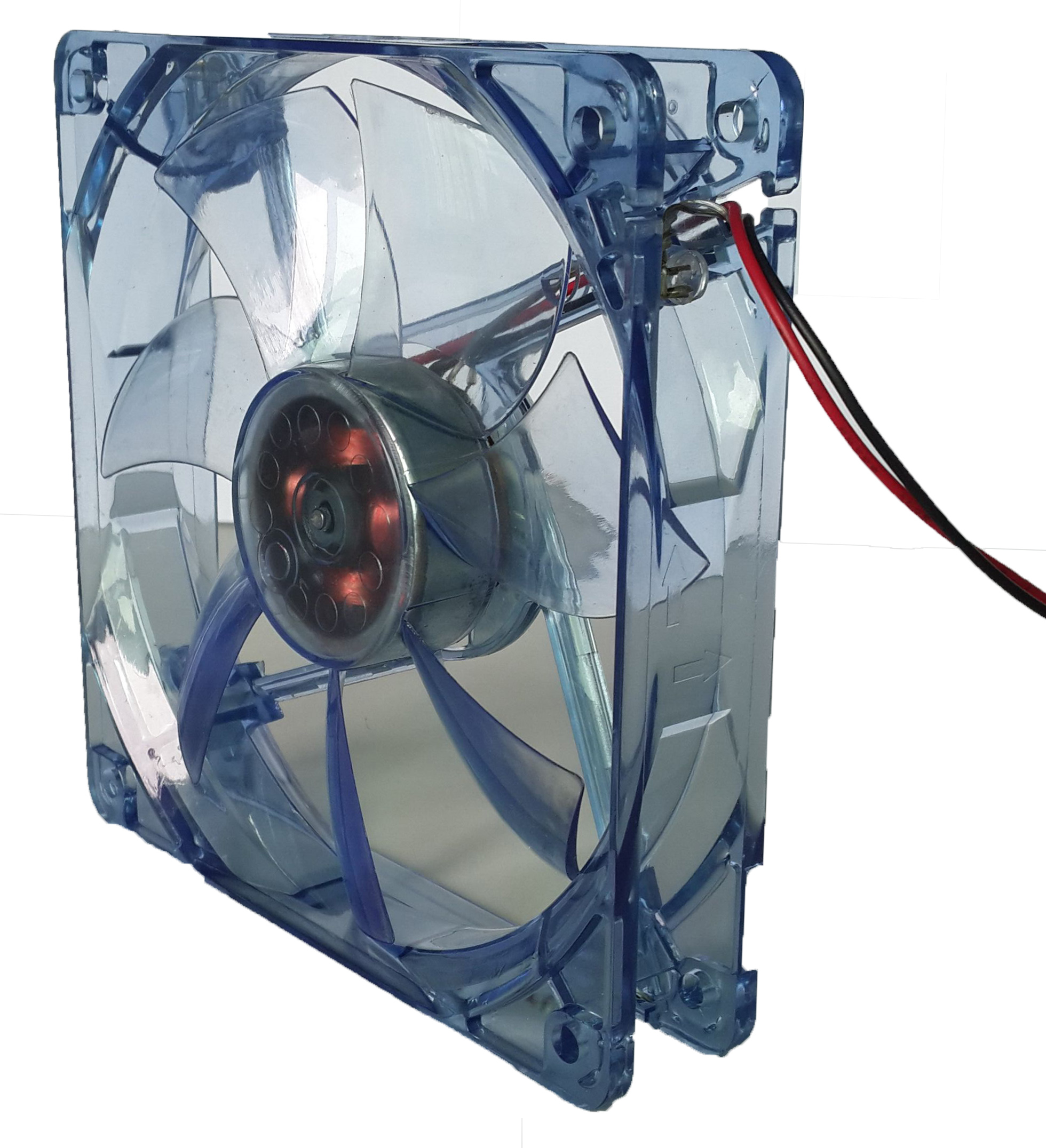

Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm

Shenzhen Topfan Technology Development Co., Ltd.
Contact Now
    Buy cheap Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm from wholesalers

    Buy cheap Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm from wholesalers
    • Buy cheap Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm from wholesalers
    • Buy cheap Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm from wholesalers

    Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm

    Ask Lasest Price
    Brand Name : MX
    Model Number : MX12025ABH1
    Certification : CE/ROHS/UL/SGS
    Price : us$1.5/pcs to us$3.00/pcs, and negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 600,000pcs per month
    Delivery Time : 5-12 working days after received your payment
    • Product Details
    • Company Profile

    Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm

    Transparent Blue Computer Case Cooling Fans 12V DC Fan 120mm×120mm×25mm



    Applications:


    Topfan's brushless axial dc fan 120mm 4.7inch, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


    Detailed Product Description:

    • Voltage:12V , 24V, 48V
    • Insulation Resistance:10M AT 500VDC
    • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
    • Opetation Temperature:-10℃~70℃(Ordinary humidity)
    • Storage Temperature:-40℃~70℃(Ordinary humidity)
    • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)

    Specifications:


    ModelBearing TypeRated VoltageOperating VoltageInput CurrentInput PowerSpeedMax Air FlowMax Static PressureNoiseWeight
    Part No.B.SVDCVDCAmpWattRPMCFMm3/minInch-H2OpadB-Ag
    MX12025AB(S/Y)U1B.S.Y127.0-13.80.809.603500122.123.460.3177.4749.00140.00
    MX12025AB(S/Y)H1B.S.Y127.0-13.80.506.003000103.922.940.2460.5144.00140.00
    MX12025AB(S/Y)M1B.S.Y127.0-13.80.404.80250086.652.450.1844.0339.00140.00
    MX12025AB(S/Y)L1B.S.Y127.0-13.80.202.40200067.011.900.1026.0935.00140.00
    MX12025AB(S/Y)U2B.S.Y2414.0-27.60.5012.003500122.123.460.3177.4749.00140.00
    MX12025AB(S/Y)H2B.S.Y2414.0-27.60.409.603000103.922.940.2460.5144.00140.00
    MX12025AB(S/Y)M2B.S.Y2414.0-27.60.256.00250086.652.450.1844.0339.00140.00
    MX12025AB(S/Y)L2B.S.Y2414.0-27.60.153.60200067.011.900.1026.0935.00140.00
    MX12025AB(S/Y)U4B.S.Y4828.0-56.00.4019.203500122.123.460.3177.4749.00140.00
    MX12025AB(S/Y)H4B.S.Y4828.0-56.00.3014.403000103.922.940.2460.5144.00140.00
    MX12025AB(S/Y)M4B.S.Y4828.0-56.00.209.60250086.652.450.1844.0339.00140.00
    MX12025AB(S/Y)L4B.S.Y4828.0-56.00.104.80200067.011.900.1026.0935.00140.00

    Competitive Advantage:


    *Qualified, cost effective and easily operated

    *Small in shape, have compact structure

    *UL, CE, Rohs, CUL, CCC

    * Competitive Pricing

    * Keep Investing and Developing In New Products

    * The Most Advanced Testing and Measuring Equipment

    * On-Time Delivery
