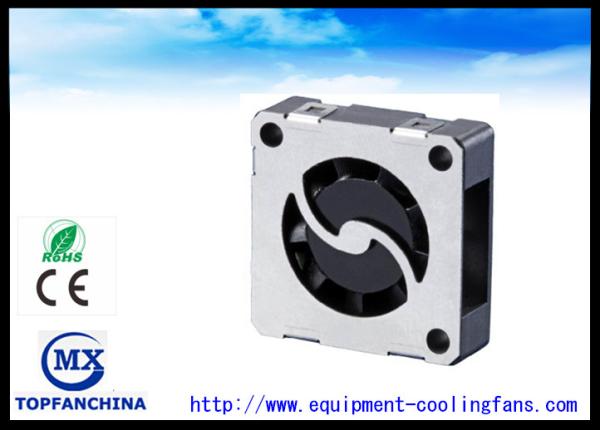

    18mm Micro Blower Plastic Cooling Fans For Audio Equipment , Lightweight

    Ask Lasest Price
    Brand Name : MX/ODM/OEM
    Model Number : M1804ANH5
    Certification : CE/ROHS/UL/SGS
    Price : us$1.5/pcs to us$3.00/pcs, and negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 600,000pcs per month
    Delivery Time : 5-12 working days after received your payment
    • Product Details
    • Company Profile

    18mm Micro Blower Plastic Cooling Fans For Audio Equipment , Lightweight


    18mm Micro Blower Plastic Cooling Fans For Audio Equipment , Lightweight


    Specification:

    ModelBearing TypeOptionRated VoltageOperating VoltageInput CurrentSpeedMax Air FlowMax Static PressureNoiseWeight
    Part No.B.S.NVDCVDCmARPMCFMmmAqdB-Ag
    MX1804GNH5NA3.32.8-3.630.0070000.142.4425.001.80
    NB5.04.5-5.545.00110000.205.1635.001.80



    Applications:
    Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
    such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.






    Description About Our Company Products:

    ● Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
    ● Various Size
    ● High speed , Middle speed, Low speed
    ● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
    ● 5 blades 7 blades or 9 blades
    ● 5V DC 12V DC 24V DC or 48V DC
    ● Ball bearing or Sleeve bearing or Hydraulic bearing
    ● Terminal or Lead wire
    ● Waterproof explosion proof or high proof are can be satisfied.

    (Specification and Features)
    SPECIFICATION
    Model NumberMX2508GNH5
    Product NameMicro Blower
    BearingAxially-grooved Bearing
    Rated Voltage (VDC)3 .3V5V
    Operating Voltage (VDC)2.8 ~ 5.5
    Rated Current (mA)40 ± 15%60 ± 15%
    Rotation Speed (RPM)7000 ± 20%9000 ± 20%
    Air Flow (CFM)0 . 380 . 57
    Static Pressure (mmAq)2.14%4.73
    Noise (dB(A))25-35
    Insulation Resistance10MEGA. Ω Min. at 500VDC (between frame and (+) terminal)
    Dielectric Strength5mA Max. at 500VAC , 60Hz , One Minute (between frame and (+) terminal)
    Life Expectancy20,000 hours at 45℃
    IP RatingIP57




    Application:





    Competitive Advantage:

    * Qualified, cost effective and easily operated
    * Small in shape, have compact structure
    * UL, CE, Rohs, CUL, CCC
    * Competitive Pricing
    * Keep Investing and Developing In New Products
    * The Most Advanced Testing and Measuring Equipment
    * On-Time Delivery

    FAQ:

    Q1. Are you factory?

    A1. Yes.welcome to visit our factory.


    Q2. All products have a warranty?

    All kinds of products at least 1 year warranty.


    Q3. Can we design packaging?

    A3. Yes.Default is regular packing,we can make customer's own packing.


    Q4. Can we add our logo on products?

    A4. Yes.


    Q5. How to control the quanlity of products in your company.

    A5: 100% total testing before each of fan leaves our factory.


    Q6. can we customize product?

    A6. Yes, OEM&ODM.
