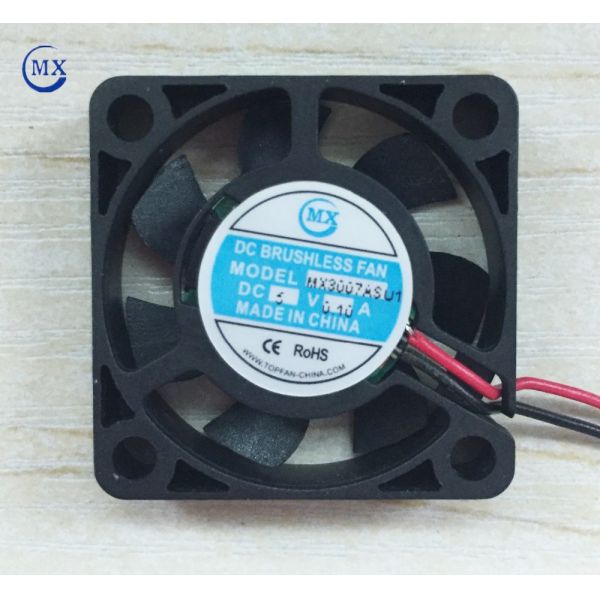

Mini Air Conditioner Component Cooling Fan 12v Dc 30307mm Size For Cars

Ask Lasest Price
Brand Name :	MX/OEM/ODM
Model Number :	MX3007AB(S)L1
Certification :	CE/ROHS
Price :	usd1.9-4.9/pcs
Payment Terms :	T/T
Supply Ability :	20000pcs/week
Delivery Time :	7-14 working days

Add to Cart

Product Details
Company Profile

Mini Air Conditioner Component Cooling Fan 12v Dc 30307mm Size For Cars

30307mm mini air conditioner for cars 12v dc fan for laptop

1. Expexted life
1). Ball Bearing 50,000 hours(400C)
2). Sleeve Bearing 30,000 hours(400C)

2. Allowable Ambient Temperature Range:
1). -100C~+700C (Operating)
2). -400C~+700C (Storage)
3). non-condensing environment

Our Company

Mini Air Conditioner Component Cooling Fan 12v Dc 30*30*7mm Size For Cars

Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates production , research , development and sales . It has 3000 flat plant and professional design and production team . At present , the company has production development department , Q & C department , R & D department , the domestic sales department and overseas sales department .

In order to protect the customer ` s rights and interests , all the products were tested strictly and repeatedly before being put on the market . According to the customer ’ s different requirements , we can do the following tests of fan : wind tunnel test , vibration test , noise test , drop test , salt spray test , waterproof test , dust test , cycle test of high and low temperature , life testing , simulation test of high altitude low voltage, and ten items tested ROHS .

Product Description

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX3010AB(S/Y)U5	B.S.Y	5	3.0-6.5	0.28	1.40	12000	4.15	0.12	0.25	61.10	30.00	8.00
MX3010AB(S/Y)H5	B.S.Y	5	3.0-6.5	0.20	1.00	10000	3.38	0.10	0.17	41.58	28.00	8.00
MX3010AB(S/Y)M5	B.S.Y	5	3.0-6.5	0.15	0.75	8000	2.49	0.07	0.13	31.68	22.00	8.00
MX3010AB(S/Y)L5	B.S.Y	5	3.0-6.5	0.10	0.50	6000	2.01	0.06	0.07	16.87	20.00	8.00
MX3010AB(S/Y)U1	B.S.Y	12	7.0-13.8	0.12	1.44	12000	4.15	0.12	0.25	61.10	30.00	8.00
MX3010AB(S/Y)H1	B.S.Y	12	7.0-13.8	0.10	1.20	10000	3.38	0.10	0.17	41.58	28.00	8.00
MX3010AB(S/Y)M1	B.S.Y	12	7.0-13.8	0.08	0.96	8000	2.49	0.07	0.13	31.68	22.00	8.00
MX3007AB(S/Y)L1	B.S.Y	12	7.0-13.8	0.05	0.60	6000	2.01	0.06	0.07	16.87	20.00	8.00

Detailed Images

Packing & Delivery

Samples delivery time is 7 working days . (2-3 samples of some conventional fans can be provided .)
Fans quantity : 1K - 5K , the delivery time is 7-10 working days ;
Fans quantity : over 5K , the delivery time is 15-20working days .
Depending on the different type of fan and quantity, there will be different delivery dates, please ask Mona for details .
International express:UPS/DHL/FEDEX and so on .

Certifications

How to choose

How to choose the fan you want:
( Please provide these information )
Fan Type : Axial / blower / cross flow fan ; DC / AC
Case Size (Dimensions)
Speed
Air Flow
Noise
Rating Voltage : 3V / 5V / 12V / 48V / 115V / 220-240V
Bearing : Sleeve / 2Ball / Hydraulic
Wire : 2 lead wires / 3 lead wires / 4 lead wires ( with RD FG or PWM)
Wire Length
Connector or not
Ambient temperature
Fan products used
Target Price
