| Brand Name : | MX |
| Model Number : | MX |
| Certification : | CE / ROHS |
| Price : | USD + 8.2 / 8.6 + Piece |
| Payment Terms : | T / T |
| Supply Ability : | 100000PCS / MONTH |
| Delivery Time : | 12 - 15 DAYS |
Aluminum Frame Equipment Cooling Fan
Product descirption
| Product name | Equipment Cooling Fan |
| Power | 9.6-11W |
| Current | 0.03-0.05A |
| Air flow | 7CFM |
| Application | AC power Equipmet |
| Life | 50000 hours |

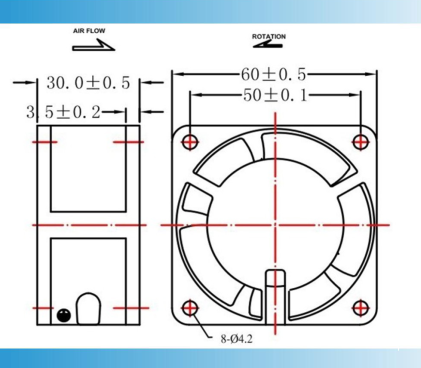

Product Drawing

| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX6030ABH11 | B | 110/120 | 50/60 | 0.042/0.04 | 6 | 2400/3000 | 7.0/10 | 0.23/0.29 | 0.07/0.12 | 27/29 | 150 |
| MX6030ABH22 | B | 220/240 | 50/60 | 0.04/0.03 | 7 | 2400/3000 | 7.0/10 | 0.23/0.29 | 0.07/0.12 | 27/29 | 150 |
Company profile
ShenZhen Topfan China is a professional manufaturer with 11 years experience Which produces AC fan, DC fan,
brushless fan, blower fan and EC fan. Our main markets are south Asia,south America, Europe.
“Concentrate on the sevice of customer” is our purpose.

Packing
Paperboard---------Cartons-------- Card board-----Containers

Product detail


|
